Media converters

USED-C Ware inklusive Anleitung und Netzteil   Highlights: 1x 10/100/1000BaseT Ethernet TP Port; 1x 1000BaseSX/LX SFP Slot TP Port unterstützt Half/Full-Duplex, Auto-MDI/MDI-X und Auto-Negotiation SFP Slot unterstützt Multi oder Single Mode SFP (mini Gbic) Modules Ethernet 802.3x Flow Control Technische Daten: Element Spezifization Standards:   IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control Netzwerkanschlüsse: 1x 10/100/1000BaseT (RJ-45) 1x 1000BaseSX/LX SFP Module Slot (optionales GBIC wird noch benötigt - ziehe Zubehör) Datenübertragungsrate: Half/Full-Duplex on TP Übertragungsmedien: TP:10/100/1000BaseT Cat. 5, 5E, 6 UTP/STP, bis zu 100 m 1000BaseSX: 62.5/125µm Multi Mode LWL, bis zu 220 m (Abhängig vom jeweiligen GBIC welches Sie da reinstecken) 50/125µm Multi Mode LWL, bis zu 550 m (Abhängig vom jeweiligen GBIC welches Sie da reinstecken) 1000BaseLX: 9/125µm Single Mode LWL Led Anzeige: 1x Power on Per Port:(TX): Link, TX ; (FX): Link, RX Stromversorgung: DC 5V/2A externes Netzteil (i.Lieferumfang) Stromverbrauch: 3 Watts (Max) Maße: 94 × 71 × 26 mm (L x B x H) Gewicht: 230g ohne Netzteil und Verpackung Umgebung: Temperatur Betrieb: 0 ~ 50 °C Luftfeuchtigkeit Betrieb: 10% ~ 90% (nicht kondensierend) Temperatur Aufbewahrung: -20 ~ 70 °C Luftfeuchtigkeit Aufbewahrung: 10% ~ 90% (nicht kondensierend) Kennzeichnung: CE

Highlights: 1x 10/100BaseTX Ethernet TP Port, 1x100BaseFX Ethernet Fiber Port TP Port unterstützt Half/Full-Duplex, Auto-MDI/MDI-X und Auto-Negotiation FX Fiber Port unterstützt Multi Mode SC Ethernet 802.3x Flow Control Technische Daten:   Element Spezifikation Standards:   IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX/100BaseFX IEEE 802.3x Flow Control Netzwerkanschlüsse: 1x 10/100BaseT (RJ-45) Connector 1 100BaseFX mit Fiber Connector MM, SC Datenübertragungsrate: Ethernet: 10Mbps/Half-Duplex ; 20Mbps/Full-Duplex Fast Ethernet: 100Mbps/Half-Duplex; 200Mbps/Full-Duplex Übertragungsmedien: 10BaseT Cat. 3, 4, 5 UTP/STP, bis zu 100 m 100BaseTX Cat. 5 UTP/STP, bis zu 100 m 100BaseFX 50/125µm oder 62.5/125µm Multi Mode SC-Typ LWL, bis zu 2 km Led Anzeige: 1x Power on Per Port:(TX): Link, TX ; (FX): Link, RX Stromversorgung: DC 5V/2A externes Netzteil Stromverbrauch: 3 Watts (Max) Maße: 94 × 71 × 26 mm (L x B x H) Gewicht: 230g ohne Netzteil und Verpackung Umgebung: Temperatur Betrieb: 0 ~ 50 °C Luftfeuchtigkeit Betrieb: 10% ~ 90% (nicht kondensierend) Temperatur Aufbewahrung: -20 ~ 70 °C Luftfeuchtigkeit Aufbewahrung: 10% ~ 90% (nicht kondensierend) Kennzeichnung: CE

Used B-Ware getestet und vollständig, 6 Monate Garantie ALLNET 10G Fiber Media Converter Highlights: Mediaconverter from 10GBase-T to 10G Base-SFP+ Fibre-Port down compatible to 2,5G-Base-T / 5G-Base-T Cooper and 2,5G-Base-X / 5G-Base-R Fibre Workmode 1000Base-T to 1000Base-X / 2.5GBase-T to 2500Base-X / 5Gbase-T to 5GBase-R / 10Gbase-T to 10GBase-R 1x 10G Cooper Port & 1x SFP+ Slot optional SFP+ Modules needed 5V Power-Supply support also into the ALL-MCS014 Chassis Der 10G Base-T to 10G Base-R Media Converter unterstützt zwei Arten von Medien für Netzwerkverbindungen wie 10GBase-T und 10GBase-FX. Der Bridge Media Converter ist mit einem 10Gbase Ethernet PHY Chip ausgestattet, der zwei Typen von Segmenten reibungslos miteinander verbindet. Dieser Konverter kann als Einzelgerät oder als Einschubmodul zum 19" -Konverter-Rack verwendet werden. Technical Details:   Standards    1000Base-T 2.5GBase-T 5Gbase-T 10Gbase-T 1000Base-X 2500Base-X 5GBase-R 10GBase-R       Media Supported    1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m;    5GBase-T: Cat5e UTP/STP. MAX 50m; 10G Base-T: Cat6a UTP/STP. MAX 50m; Port Type    RJ45,    SFP Slot        Work Mode    1000Base-T    to    1000Base-X 2.5GBase-T    to    2500Base-X 5Gbase-T        to    5GBase-R    10Gbase-T      to    10GBase-R Power Supply    12V DC    Power    consumption      MAX 5W    Operation Tempera tore    0? to 55? Relative Humidity    5% to 80% (non-condensation)

Highlights: Hardened Industrial 95W Power Booster Boost Voltage from 24VDC to 55VDC to deliver 95Watts power to your PD Input voltage 24VDC Output Voltage 48VDC to 55VDC with voltage adjustable knob Operating temp: -40°C to +75°C Introduction This Rugged design 95 Watts Power Booster is a power device which boost 24VDC to 55VDC to power up your PD up to 95Watts. It is designed for environments where 48VDC is not available. This means that it can deliver 95Watts power in 24VDC environment. With all industrial graded components, this industrial power booster will guaranty a steady voltage output to your PD in a harsh environment. It is being rigorously tested for your Security, Transportation and Telco application. Technical Details:   LED PWR: Green: ON- power ready. OFF – no power input Overload current protection Present Removable Terminal Block / Power Connector 4 pin terminal block. 24VDC Voltage Input, 2 pin for 48 to 55 VDC Voltage output Removable Terminal Block Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG):12-24/14-22 Stranded wire(AWG): 12-24/14-22 Torque:5lb-In/0.5Nm/0.56Nm Wire Strip length: 7-8mm Voltage Adjustable Knob To adjust voltage output from 55VDC to 48VDC to meet your existing application Booster Power Maximum Booster power 95watts at 24VDC input Operating Temperature -40°~75° C fully tested. Operating Humidity 5% to 95% (Non-condensing) Storage Temperature -40°~85° Housing Rugged Metal, IP30 Protection Case Dimension (L X W X D)mm 59x36x49mm (LxWxD) Installation mounting DIN Rail mounting and Wall Mounting   Certifications:   Safety IEC EN60950-1 EMC/EMS  CE, FCC, VCCI EMI FCC Part 15 Subpart B Class A, CE EN 55022 Class A EN 50155 / EN 60068-2-6 Vibration EN 50155 / EN 60068-2-27 Shock EN 50155 / EN 60068-2-32 Free Fall

Highlights: 1x 10/100BaseTX Ethernet TP Port; 1x 100BaseFX Ethernet Fiber Port TP Port can support Half/Full-Duplex, Auto-MDI/MDI-X and Auto-Negotiation 1x 100BaseFX Fiber Port support Multi Mode SC Ethernet 802.3x Flow Control Technical Features: Item Specification Standards:   IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX/100BaseFX IEEE 802.3x FLow Control Features: 1x 10/100BaseT with RJ-45 Connector 1x 100BaseFX with Fiber Connector MM,SC Data Transfer Rate: Ethernet: 10Mbps/Half-Duplex; 20Mbps/Full-Duplex Fast Ethernet: 100Mbps/Half-Duplex; 200Mbps/Full-Duplex Transmission Media: 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m 100BaseTX Cat. 5 UTP/STP, up to 100 m 100BaseFX: 50/125µm or 62.5/125µm Multi Mode SC-Type Fiber optic cable, up to 2 km Led Indicators: 1x Power on Per Port:(TX): Link, TX ; (FX): Link, RX Power Requirement: DC 5V/2A external Power Supply Power consumption: 3 Watts (Max) Dimensions: 94 × 71 × 26 mm (L x W x H) Weight: 230g (only WC) Environment: Temperature operarting: 0 ~ 50 °C Humidity operating: 10% ~ 90% (non-condensing) Temperature storage: -20 ~ 70 °C Humidity storage: 10% ~ 90% (non-condensing) Certifications: CE

Highlights: 1x 10/100/1000BaseT Ethernet TP Port; 1x 1000BaseSX Ethernet Fiber Port TP Port support Half/Full-Duplex, Auto-MDI/MDI-X and Auto-Negotiation Gigabit Fiber Port support Multi Mode SC Ethernet 802.3x Flow Control Technical Features:   Item Specification Standards:   IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX IEEE 802.3x Flow Control Features: 1x 10/100/1000BaseT with RJ-45 Connector 1x 1000BaseSX with Fiber Connector MM,SC Data Transfer Rate: Half/Full-Duplex on TP Transmission Media: TP:10/100/ 1000BaseT Cat. 5, 5E, 6 UTP/STP, up to 100 m 1000BaseSX: 62.5/125µm Multi Mode Fiber optic cable, up to 220 m 50/125µm Multi Mode Fiber optic cable, up to 550 m Led Indicators: 1x Power on Per Port:(TX): Link, TX ; (FX): Link, RX Power Requirement: DC 5V/2A external Power Supply Power consumption: 3 Watts (Max) Dimensions: 94 × 71 × 26 mm (L x W x H) Weight: 230g (only WC) Environment: Temperature operarting: 0 ~ 50 °C Humidity operating: 10% ~ 90% (non-condensing) Temperature storage: -20 ~ 70 °C Humidity storage: 10% ~ 90% (non-condensing) Certifications: CE

Highlights: 1x 10/100/1000BaseT Ethernet TP Port; 1x 1000BaseSX/LX SFP Slot TP Port support Half/Full-Duplex, Auto-MDI/MDI-X and Auto-Negotiation SFP slot can support either Multi or Single Mode SFP (mini Gbic) Modules Ethernet 802.3x Flow Control   Technical Features: Item Specification Standards:   IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control Features: 1x 10/100/1000BaseT with RJ-45 Connector 1x 1000BaseSX/LX SFP Module Slot Data Transfer Rate: Half/Full-Duplex on TP Transmission Media: TP:10/100/1000BaseT Cat. 5, 5E, 6 UTP/STP, up to 100 m 1000BaseSX: 62.5/125µm Multi Mode Fiber optic cable, up to 220 m 50/125µm Multi Mode Fiber optic cable, up to 550 m 1000BaseLX: 9/125µm Single Mode Fiber optic cable Led Indicators: 1x Power on Per Port:(TX): Link, TX ; (FX): Link, RX Power Requirement: DC 5V/2A external Power Supply Power consumption: 3 Watts (Max) Dimensions: 94 × 71 × 26 mm (L x W x H) Weight: 230g (only WC) Environment: Temperature operarting: 0 ~ 50 °C Humidity operating: 10% ~ 90% (non-condensing) Temperature storage: -20 ~ 70 °C Humidity storage: 10% ~ 90% (non-condensing) Marks: CE

Highlights: 1x 10/100/1000BaseT Ethernet TP Port; 1x 1000BaseLX Ethernet Fiber Port TP Port support Half/Full-Duplex, Auto-MDI/MDI-X and Auto-Negotiation Gigabit Fiber Port support Single Mode SC Ethernet 802.3x Flow Control   Technical Features:   Item Specification Standards:   IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseLX IEEE 802.3x Flow Control Features: 1x 10/100/1000BaseT with RJ-45 Connector 1x 1000BaseLX with Fiber Connector SM,SC Data Transfer Rate: Half/Full-Duplex on TP Transmission Media: TP:10/100/ 1000BaseT Cat. 5, 5E, 6 UTP/STP, up to 100 m 1000BaseLX: 8.3/125µm Single Mode LWL, up to 20 km 8.7/125µm Single Mode LWL, up to 20 km 9/125µm Single Mode LWL, up to 20 km 10/125µm Single Mode LWL, up to 20 km Led Indicators: 1x Power on Per Port:(TX): Link, TX ; (FX): Link, RX Power Requirement: DC 5V/2A external Power Supply Power consumption: 3 Watts (Max) Dimensions: 94 × 71 × 26 mm (L x W x H) Weight: 230g (only WC) Environment: Temperature operarting: 0 ~ 50 °C Humidity operating: 10% ~ 90% (non-condensing) Temperature storage: -20 ~ 70 °C Humidity storage: 10% ~ 90% (non-condensing) Certifications: CE

Highlights: 1x 10/100BaseTX Ethernet TP Port 1x 100BaseFX Ethernet Fiber Port TP Port support Half/Full-Duplex Auto-MDI/MDI-X and Auto-Negotiation FX Fiber Port support Single Mode SC 20km   Technical Features: Item Specification Standards:   IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX/100BaseFX IEEE 802.3x Flow Control Features: 1x 10/100BaseT with RJ-45 Connector 1x 100BaseFX with Fiber Connector SM,SC Data Transfer Rate: Ethernet: 10Mbps/Half-Duplex; 20Mbps/Full-Duplex Fast Ethernet: 100Mbps/Half-Duplex; 200Mbps/Full-Duplex Transmission Media: 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m 100BaseTX Cat. 5 UTP/STP, up to 100 m 100BaseFX: 9/125µm Single Mode SC-Type Fiber optic cable, up to 20 km Led Indicators: 1x Power on Per Port:(TX): Link, TX ; (FX): Link, RX Power Requirement: DC 5V/2A external Power Supply Power consumption: 3 Watts (Max) Dimensions: 94 × 71 × 26 mm (L x W x H) Weight: 230g (only  Mediaconverter) Environment: Temperature operarting: 0 ~ 50 °C Humidity operating: 10% ~ 90% (non-condensing) Temperature storage: -20 ~ 70 °C Humidity storage: 10% ~ 90% (non-condensing) Certifications: CE

Highlights: 1x 10/100BaseTX Ethernet TP Port 1x 100BaseFX Ethernet Fiber Port ST Multimode TP Port support Half/Full-Duplex Auto-MDI/MDI-X and Auto-Negotiation Technical Features: Item Specification Standards:   IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX/100BaseFX IEEE 802.3x FLow Control Features: 1x 10/100BaseT with RJ-45 Connector 1x 100BaseFX with Fiber Connector MM,ST Data Transfer Rate: Ethernet: 10Mbps/Half-Duplex; 20Mbps/Full-Duplex Fast Ethernet: 100Mbps/Half-Duplex; 200Mbps/Full-Duplex Transmission Media: 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m 100BaseTX Cat. 5 UTP/STP, up to 100 m 100BaseFX: 50/125µm or 62.5/125µm Multi Mode ST-Type Fiber optic cable, up to 2 km Led Indicators: 1x Power on Per Port:(TX): Link, TX ; (FX): Link, RX Power Requirement: DC 5V/2A external Power Supply Power consumption: 3 Watts (Max) Dimensions: 94 × 71 × 26 mm (L x W x H) Weight: 230g (only  Mediaconverter) Environment: Temperature operarting: 0 ~ 50 °C Humidity operating: 10% ~ 90% (non-condensing) Temperature storage: -20 ~ 70 °C Humidity storage: 10% ~ 90% (non-condensing) Certifications: CE

Highlights: Supporting IEEE802.3z 1000Base-SX/LX standards Supporting full-duplex/half-duplex transmission mode Supporting conversion between 850nm multi-mode fiber and 1310/1550nm single mode fiber Supporting direct and transparent transmission of packets at different lengths Technical Details: Element Spezifikation Standards: IEEE 802.3z 1000-SX/LX Gigabit Ethernet Features: 1x 1000Base-SFP Port 1x 1000Base-SFP Port Data Transfer Rate: Half/Full-Duplex Transmission Media: 1000BaseSX: 62.5/125µm Multi Mode LWL, bis zu 220 m 50/125µm Multi Mode LWL, bis zu 550 m 1000BaseLX: 9/125µm Single Mode LWL Led Indicators: 1x Power on Per Port:(TX): Link, TX ; (FX): Link, RX Power Requirement: DC 5V/2A external Power Supply Power consumption: 3 Watts (Max) Dimensions: 95 × 70 × 26 mm (L x B x H) Weight: 230g (only WC) Environment: Temperature operarting: 0 ~ 50 °C Humidity operating: 10% ~ 90% (non-condensing) Temperature storage: -20 ~ 70 °C Humidity storage: 10% ~ 90% (non-condensing) Marks: CE

ALLNET 10G fibre media converter Highlights: Media converter from 10GBase-T to 10G Base-SFP+ fibre port Dependently compatible with 2.5G-Base-T / 5G-Base-T Cooper and 2.5G-Base-X / 5G-Base-R fibre optic Working mode: 1000Base-T to 1000Base-X / 2.5GBase-T to 2500Base-X / 5Gbase-T to 5GBase-R / 10Gbase-T to 10GBase-R 1x 10G Cooper port & 1x SFP+ slot optional SFP+ modules required The 10G Base-T to 10G Base-R Media Converter supports two types of media for network connections such as 10GBase-T and 10GBase-FX. The Bridge Media Converter is equipped with a 10Gbase Ethernet PHY chip that smoothly connects two types of segments together. IMPORTANT: The following MODI are possible:1000Base-T  <-> 1000Base-X Fibre and vice versa 2.5GBase-T  <-> 2500Base-X Fibre and vice versa 5Gbase-T  <->  5GBase-R Fibre and vice versa 10Gbase-T  <-> 10GBase-R Fibre and vice versa Technical details: Standards 1000Base-T 2.5GBase-T 5Gbase-T 10Gbase-T 1000Base-X 2500Base-X 5GBase-R 10GBase-R Media Supported 1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10G Base-T: Cat6a UTP/STP. MAX 50m; Port Type RJ45, SFP Slot Work mode 1000Base-T to 1000Base-X 2.5GBase-T to 2500Base-X 5Gbase-T to 5GBase-R 10Gbase-T to 10GBase-R Power Supply 12V DC Power consumption: MAX 5W Operation Tempera tore 0°C to 55°C Relative Humidity 5% to 80% (non-condensation)

Highlights: Hardened 60W Gigabit POE converter designed with hardened Marvell IC 1x10/100/1000M 60W PSE (supports 802.3af/at) TX + 100/1000M SFP 48-56VDC Redundant Power-Input Operating temp: -40°C to +75°C   This Rugged 60 Watts Industrial POE converter is designed with hardened Marvell IC, it delivers 60Watts POE power to your PD. It also can tolerate extreme temperature in a harsh environment. Our ColdDesign technology will not only power up your PD device, also reduce the excessive heat problem to a minimum. It accepts the input voltage from 48VDC to 56VDC to meet IEEE802.3af/at required voltage. It is being rigorously tested for your Security, Transportation and Telco application.   Technical Detail: Element Specification Standards:   IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control Back Pressure IEEE802.af for PoE IEEE802.3at for PoE+ Network Connections: 1x 10/100/1000BaseT (RJ-45) 1x 1000BaseSX/LX SFP Module Slot Data Processing: Half/Full-Duplex on TP PoE: IEEE802.3at/af compatile Flow Control: IEEE802.3x Flow Control and Back Pressure Jumbo Frame 9KB Packet Buffer Size 1M MAC adress Table Size 2K Network Cable: TP:10/100/1000BaseT Cat. 5, 5E, 6 UTP/STP, till 100 m 1000BaseSX: 62.5/125μm Multi Mode LWL, till 220 m 50/125μm Multi Mode LWL, till 550 m 1000BaseLX: 9/125μm Single Mode LWL POE Pin Assignment: 60 watts 4 pairs V+, V+, V-, V- for pin 1, 2, 3, 6 V+, V+, V-, V- for pin 4, 5, 7, 8 DIP Switch: To select SFP speed 100M or 1000M. Reverse polarity protection: Present Overload current protection: Present LED: PW1(power 1) Green: ON- power good, OFF-power failed UTP LEDS: Amber ON- PD detected,  Green ON – Link/active SFP LED: Green ON – SFP detected Power Supply: 4pin Terminal Block 48V-56V VDC Power Input SW (Relay): Relay switch for alarm Power Consumption: 2W@48VDC without PoE PoE Power: Maximum PoE Power 72W at 56VDC Input Alarm Relay Contact: Relay outputs with current carrying capacity of 1 A @24VDC, Relay in short circuit mode when power fails. in open circuit mode when power supply is connected Removable Terminal Block: Provide 4 pin terminal block Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG):12-24/14-22 Stranded wire(AWG): 12-24/14-22 Torque:5lb-In/0.5Nm/0.56Nm Wire Strip length: 7-8mm Case Dimension (L X W X D)mm 103.5mmx32mmx81.5mm (LxWxD) Installation mounting: DIN Rail mounting and Wall Mounting Housing: Rugged Metal, IP30 Protection MTBF ( mean time between failure) 510,304 hrs ( MIL-HDBK-217F) at 25°C Environment: Operating Temperature: -40° ~ +75° °C Operating Humidity:  5% ~ 95% (non condensing) Storage Temperature: -40 ~ 85 °C Storage Humidity: 5% ~ 95% (non condensing) Marks: CE, FCC, VCCI EN55022 Class A EN55022/24  ITE Equipment EN55011       Industrial, Scientific and Medical (ISM) equipment IEC EN60950-1 Sicherheit Shock: EN50155 / EN 60068-2-27 Free Fall: EN5055 / EN 60068-2-32 Vibration: EN 50155 / IEC 60068-2-6 EMI: FCC Part 15 Supbart B Class A CE EN 55022 Class A

Highlights: 14 slots Chassis for stand-alone Media converter for ALL-MC1xx Series 19" 2U incl. 2x Power Supplies Technical Details: Element Spezifikation Slots:   14x slots for 10/100M or 1000M or 10/100/1000M stand-alone media converter of ALL-MC1xx Series Material:   aluminium alloy or steel Power in: AC 90V ~ 230V Power Out:   DC 5V 12A Max Power Consumption:   120W Dimensions: 485 × 231 × 90 mm (L x W x H) , 19", 2U Ripple:   ≤50 Mv Noise :   ≤50 M Additional Features:   Protection of power supply circuit-breaker when overvoltage circuit-breaker when overflow circuit-breaker  when short circuit  Environment: Temperature operarting: -10 ~ 50 °C Humidity operating: 5% ~ 95% (non-condensing) Temperature storage: -20 ~ 85 °C Humidity storage: 5% ~ 95% (non-condensing) Marks: CE

Highlights: Outdoor IP68 Gigabit Repeater 1x 10/100/1000M PoE (IEEE802.3at POE+) INPUT 1x 10/100/1000M PoE (IEEE802.3at POE+) OUTPUT Max. OUTPUT Power 25W,  PoE Pin 1/2(+) 3/6 (-) Outdoor Temperature Range: -25°C bis +55°C Power over Ethernet, simply expand by 100m. The Power Over Ethernet Repeater ALLNET ALL-PR2012P-E extends the PoE and network range by another 100m. Depending on the PoE input power, up to 4 repeaters can be connected in series. We recommend e.g. the ALLNET ALL0489v3 PoE injector for the output power or any other PoE IEEE802.3at switch.   Technical Details: IEEE Standard: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3af for POE IEEE802.3at for POE+ Network Connector: 1x 10/100/1000M PoE (IEEE802.3at POE+) INPUT 1x 10/100/1000M PoE (IEEE802.3at POE+) OUTPUT Power over Ethernet input: Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) Power over Ethernet output: Pin Assignment and Polarity: 1/2 (+), 3/6 (-) Output power: up to 25W Maximum Distance: Expand Range up to max. 100m Connectors: Waterproof RJ-45, EIA 568A and 568B Network cables: Outdoor type shielded category 5 (or higher) Dimensions: 185mm x 45mm x 45mm Mounting: Wall or Shelf Environment: Indoor or Outdoor Environmental Conditions: Operating Ambient Temperature: -25 to 55°C Operating Humidity: Maximum 90%, noncondensing Storage Temperature: -30 to 70°C Storage Humidity: Maximum 95%, noncondensing

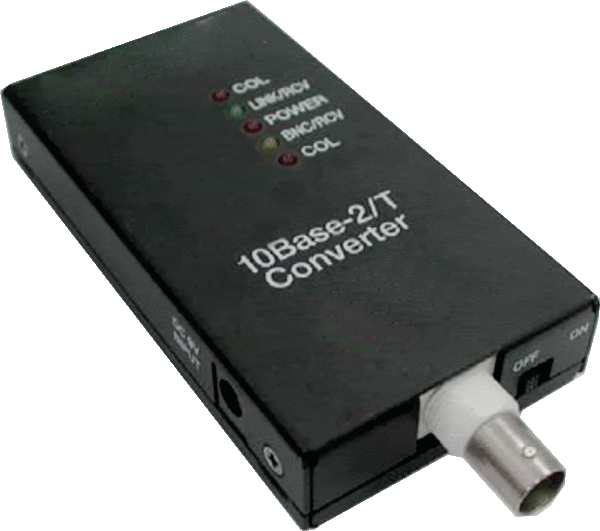

   The ALL0500v3 Converter provides easy and affordable solution for connecting your existing Thin Ethernet adapter card or Thinet Coax BNC Ethernet Network to a 10Base-T UTP network. The ALL0500v3 converts signals from Thin Ethernet for transmission over Unshielded Twisted-Pair (UTP) cable to a 10Base-T hub. Ports: 1xRJ-45 from (Hub/station) 1xBNC socket to 10 Base-2 Cable lenghts: 100 M max. per UTP cables 185 M max. per Thin Ethernet Power supply: Input 110V or 220V AC Output 12V DC, 1 Amp Environmental: Temperature: 0 to 55C (standard operating) Humidity: 10 to 90% (non-condensing) Standards 10 to 90% (non-condensing) Meets FCC Class A Subpart B of Part 15 Requirement IEEE 802.3 10Base-T/10Base-2 Star CSMA/CD Topology Baseband Twisted Pair expand upon to 4 level Thinnet up to 30 Hubs Dimensions: 0.79″ (H) x 2.17″ (W) x 4.09″ (D) CE and FCC Certification

Highlights: 2x ports RS232/422/485 changeable by DIP switch Low Voltage range of 5~36v DC Data rates range of 600~230.4kbps Introduction of 2 ports RS232/485/422 Serial Device Server ALL-SDS102 is a dual serial device server, which can realize transparent transmission between TCP/UDP data packet and RS232/RS485/RS422 interface. The device has unique functions such as network printing, Modbus multi-host polling and watchdog mechanism. ALL-SDS102 is based on ARM processor and internally integrated with TCP/IP protocol. The user can easily realize the networking of embedded devices. Features of the 2 Ports RS232/485/422 Serial Device Server Cortex-M4 kernel, industrial working temperature range and TCPIP protocol stack. Auto-MDI/MDIX,RJ45 port with 10/100Mbps TCP Server,TCP Client,UDP Client,UDP Server and HTTPD Client working mode Supports network printing Supports Modbus multi-host polling Two ports can work independently at the same time Supports Modbus RTU to Modbus TCP Can distinguish which serial port is connected to the device by port number. Supports virtual serial port and provides the corresponding software USR-VCOM Serial baud rate from 600bps to 230.4K bps;Check bit of None,Odd,Even,Mark and Space. DNS and DHCP supported Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS. Built-in web page; can also customize the web page for users Reload button, a key to restore default settings RJ45 with link/data indicator light, built-in isolation transformer, and 2 KV electromagnetic isolation IEEE purchased global unique MAC address (starting with D8-B0-4C); user can define the MAC address. Supports firmware upgrades over the network Supports keepalive, quickly detects dead links Support account and password, can be used to login and network settings page Supports one channel websocket, realizes bidirectional transparent transmission between web page and serial 0 Two serial ports;each serial can work as rs232,rs485 or rs422;DB9 socket;provide RS485/RS422 converter Two channel serial communication display: TX/RX Support DC adapter Supports UDP broadcast function Simple Transparent transmission Transparent transmission means that whatever is transmitted, our device plays the role of a channel and sends data to the destination unchanged. On-site monitoring devices send data to Serial Device Servers transparent data transmission terminal, the terminal CUP receives data via serial port and packet data. Different parameterization methods Software Settings Download settings software, search related Serial Device Servers in the LAN through the serial port server IP, name, MAC address, or the version number. Then set the parameters you need, otherwise keep the default. Web-page Settings Open your browser and inter the default IP address of the Serial Device Servers. Open the login page of Serial Server, Enter the user name and password (default admin). After setting parameter, Click Save and Restart, then setting will take effect. Serial AT commands Settings User can set parameter by module itself without going through another computer to configure. This setting method is used in the following situation: user have to configure IP address and destination IP address on site. AT command can meet the demand. After MCU connects serial server module by TTL (UART), MCU can configure setting by AT command. Application Field of 2 ports RS232/485/422 Serial Device Servers Industrial data transmission, industrial automation security and protection monitoring, public security Smart home, power control, environmental monitoring, intelligent agriculture Door check on work attendance system, POS system, rice selling system Building automation system, power monitoring, self-service banking system, telecom machine room monitoring Work Modes TCP Server Serial to Ethernet servers ALL-SDS102x listens on the setting port and waits for a TCP client connection. The data which the serial ports sent out transparently transmit to all connected TCP clients via ALL-SDS102/102v2 Technical Details: System Information   Processor Cortex-M4 Basic Frequency 120MHz Flash 512K byte Ethernet   Port Number 1 Interface Standard RJ45 Rate 10/100 Mbps MDI/MDIX, auto switch between cross and direct connection Protection 2KV electromagnetism isolation, shell insulation blocking Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Websocket, HTTPD Client Receive Buffer Max 16k bytes buffer Serial   Port Number 2 (RS232/485/422*2), 2 serial ports can simultaneously work at the different working modes. Interface Standard RS-232: TX/RX/RTS/CTS RS-485: A+/B- RS422: TX+/TX-/RX+/RX- Data Bits 5, 6, 7, 8 Stop Bit 1, 2 Check Bit None, Even, Odd, Space, Mark Baud Rate 600 bps ~ 230K bps Flow Control RTS/CTS/Xon/Xoff Buffer Send and receive 2k bytes respectively Protection ESD protection, anti-surge SocketA   Transparent Transmission Mode TCP Server/TCP Client/UDP Server/UDP Client Supported Function Networking printing, Modbus Gateway, USR-Cloud, self-defined registration package, self-defined network and serial heartbeat package SocketB TCP Client/UDP Client Software   Virtual Serial(USR-VCOM) Windows 2000 or higher (32 bit/64 bit) Configuration Built-in webpage, computer set-up software, serial command Basic Parameter   Size 150 x 79 x 30 mm Operating Temp. -40 ~ 85°C Storage Temp. -45 ~ 105°C, 5 ~ 95% RH Input Voltage DC 5 ~ 36V Working Current 95mA (aver) @ 5V 45mA (aver) @ 12V Power <1W More   Certificate CE, FCC, ROHS, KCC Accessory 12V power supply, serial line, cable, converter

Highlight: Physical Port:1x100M/1G/2.5G/5G/10GBase-T PoE PSE RJ45 Port+ 1x100M/1G/2.5G/10GBase-X SFP+ Slot Compliant with IEEE802.3u,IEEE802.3ab,IEEE802.3bz,IEEE802.3an,IEEE802.3ae,IEEE802.3x,IEEE802.3af/at/bt standard The PoE port complies with IEEE 802.3af/at/bt PoE/PoE+/PoE++ PSE standard, supports PoE power up to 90 watts The PoE port supports auto detect and supply power for the IEEE 802.3af/at/bt PoE/PoE+/PoE++ compliant PD device,which can protect devices from being damaged by incorrect installation Remote power feeding up to 100m Support store-and-forward forwarding mode,all ports support exchange at wire speed Hardware-based 100M/1G/2.5G/5G/10Gbps auto-negotiation and auto MDI/MDI-X to obtain the fastest possible connection The built-in solid DIP switch provides "Fiber Watchdog","PoE Watchdog" and "802.3af/at/bt&802.3af/at PoE Ouput" operation modes Fiber Watchdog mode:The PoE media converter can monitor the fiber connection status,and if there is no data transmitted,the corresponding fiber port will restart automatically PoE Watchdog mode:The PoE media converter can automatic detect and reboot the unresponsive PD devices without manual operation 802.3af/at/bt&802.3af/at PoE Ouput mode: The PoE media converter provides 802.3af/at,Max 30W PoE power output and 802.3af/at/bt,Max 90W PoE power output two types of PoE output mode to meet the demand of various powered devices consuming stable PoE power and can effectively solve the compatibility issue of PoE media converter with some 802.3af/at compliant PD devices Support Multi-G-Speed 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode Supports IEEE802.3x flow control in full-duplex mode and back pressure in half-duplex mode to prevents packet loss Support 12K jumbo frame size Supports MAC address auto learning and auto aging LED indicators display the working status,supporting simple trouble shooting Plug and play,no configuration required IP30 rugged high-strength metal case Solid DIN-rail or wall-mount design for flexible and easier Installation in any space-limited location internal Power-Booster, Redundant single 12-57VDC power input + tripple 48-57VDC power input with reverse polarity protection for high availability network system Industrial grade design for all components,support 6KV Surge and 8KV ESD protection -40 to +80°C wide operating temperature Free fall,shock-proof and vibration-proof for industries Fanless design with excellent heat dissipation, natural cooling ALLNET ALL-MCI2012MGPB-BT90 is a robust Industrial-grade 10G Multi-Gigabit 802.3bt PoE++ Media Converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit PoE++ Ethernet extension in harsh industrial environment.It is equipped with one 100M/1G/2.5G/5G/10GBase-T PoE PSE port and one 10GBase-X SFP+ fiber port.The PoE port support IEEE802.3af/at/bt PoE/PoE+/PoE++ PSE standard,which can supply up to 90W power.It can automatically detect and supply power for the IEEE802.3af/at/bt compliant PD,like IP camera, IP phone,wireless AP,etc. For the connected PD devices which does not support IEEE 802.3af/at/bt,it will auto stop supplying power. With Industrial grade design for all components,it can operate stably under the temperature ranging from -40°C to +80°C and provides a high level of immunity against electromagnetic interference and heavy electrical surges: 6KV Surge protection and 8KV ESD protection,which can improve product stability and protects users’ networks from devastating ESD attacks,making sure the flow of operation does not fluctuate.The ALL-MCI2012MGPB-BT90 also allows either DIN-rail or wall mounting for flexible and easier Installation in any space-limited location. Besides, the ALL-MCI2012MGPB-BT90 features a strong wide-ranging with internal Power-Booster 12-57VDC power supply input and tripple-redundant, reversible polarity 48-57VDC power supply inputs for high availability applications that require dual or backup power inputs. It is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40 to 80 °C. LED Indicators: Indicator Status Indication SYS Blink Device runs normally Off Device runs abnormally V1/V2/V3/V4 On Power is connected via V1/V2/V3/V4 power input connector Off Power is disconnected or failed V4B On PoE voltage boost is normal Off PoE voltage boost is abnormal FDG On Fiber Watchdog mode Enable Off Fiber Watchdog mode Disable PDG On PoE Watchdog mode Enable Off PoE Watchdog mode Disable PoE On PoE is active and supplying power normally Off PoE is inactive 10G/5G/2.5G On PoE port network runs at 10G / 5G / 2.5Gbps Blink PoE port is actively sending or receiving data 1G/100M On PoE port network runs at 1G/100Mbps Blink PoE port is actively sending or receiving data 10G On Fiber port optical link runs at 10Gbps Blink Fiber port is actively sending or receiving data 2.5G On Fiber port optical link runs at 2.5Gbps Blink Fiber port is actively sending or receiving data 100M/1G On Fiber port optical link runs at 100M/1Gbps Blink Fiber port is actively sending or receiving data DIP Switch Settings: DIPSwitch Status Indication 1 ON Fiber Watchdog mode Enable,the PoE Media Converter can monitor the fiber connection status, and if there is no data transmitted, the corresponding fiber port will restart automatically OFF Fiber Watchdog mode Disable 2 ON PoE Watchdog mode Enable,the PoE Media Converter can automatic detect and reboot the unresponsive PD devices without manual operation OFF PoE Watchdog mode Disable 3 ON 802.3af/at/btPoE/PoE+/PoE++ output mode ,support max 90W PoE power output OFF 802.3af/atPoE/PoE+output mode, support max30W PoE power output 4 ON/OFF Reserved Note:When the PoE Media Converter is in 802.3af/at/bt PoE/PoE+/PoE++ output mode(with DIP Switch 3 at ON status),but it can not detect and supply power to some 802.3af/at compliant PD devices, in this case, you need to set the PoE Media Converter in 802.3af/at PoE/PoE+ output mode (with DIP Switch 3 at OFF status) to detect and supply power to such 802.3af/at compliant PD devices,it can effectively solve the compatibility issue of PoE Media Converter with some 802.3af/at compliant PD devices Technical Details: Fixed Port 1x100M/1G/2.5G/5G/10GBase-TPoEPSERJ45Port+1x100M/1G/2.5G/10GBase-XSFP+Slot Standard Compliance IEEE802.3u:100Base-TX/FX Fast Ethernet IEEE802.3ab:1000Base-T Gigabit Ethernet IEEE 802.3z:1000Base-SX/LX Gigabit Ethernet IEEE 802.3bz:2.5GBase-T/5GBase-T Ethernet IEEE 802.3bz 2.5GBase-X IEEE 802.3an:10GBase-T IEEE 802.3ae:10GBase-X IEEE802.3x flow control and back pressure IEEE802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Type 4 Power over Ethernet Plus Plus Switch Properties Switching Capacity:40Gbps MAC Address Table: 8K Packet Buffer Size: 8.1M Packet Forwarding Rate:29.76Mpps@64bytes Jumbo Frame:12K Flow Control:IEEE802.3x flow control in full-duplex mode and back pressure in half-duplex mode Switching mode: Store and Forward (fullwirespeed) Network Medium 10Base-T: Cat3,4,5 UTP(=100 meters) 100Base-T: Cat5 UTP or better(=100 meters) 1000Base-T: Cat5e,6 UTP or better(=100 meters) 2.5GBase-T: Cat5e,6,6A,7 UTP or better(=100 meters) 5GBase-T:Cat6,6A,7 UTP or better(=100meters) 10GBase-T: Cat6A,7 UTP or better(=80 meters) 10GBase-X: up to 300m (OM3 MMF), up to 120km (9/125µm SMF) Fiber Port 1x100M/1G/2.5G/10GBase-XSFP+ Slot PoE Description PoE Port:1x100M/1G/2.5G/5G/10GBase-TRJ45 PoE Standard: IEEE802.3af/at/bt PoE/PoE+/PoE++ PSE Power Pin Assignment:1/2/4/5+,3/6/7/8-(4 Pairs) PoE Power Output: Max90W Power Requirements Input Voltage:V4:12~57VDC,Max 11A,Booster efficiency:89%-96% V1,V2,V3:48~57VDC,Max3A Connector: Removable Terminal Block(V1,V2,V4) +2.5/5.5mm DC Socket(V3) Protection: Overload protection / Reverse polarity protection / Redundancy protection Standby Power Consumption: Max 8W LED Indicator SYS: System status LED V1,V2,V3,V4:V1-V4 Power supply LED V4B: PoE voltage boost status LED (ON: PoE voltage boost is normal) FDG: Fiber Watchdog status LED PDG: PoE Watchdog status LED 10G/5G/2.5G:PoE Port 10G/5G/2.5G Ethernet Link LED 1G/100M:PoE Port 1G/100M Ethernet Link LED PoE: PoE Port PoE-in-Use LED 10G:Fiber Port 10G Optical Link LED 2.5G:Fiber Port 2.5G Optical Link LED 100M/1G:Fiber Port 100M/1G Optical Link LED Mechanical Case: High-strength Metal IP Rating: IP30 protection Cooling way: Fanless design,natural cooling Dimension: 105x90x57mm (LxWxH) N.W/G.W: 0.55Kg/0.7Kg Installation: DIN-Rai/Wall Mounted Environmental Working Temperature: -40°C~+80°C Storage Temperature: -40°C~+85°C Working Humidity: 5%~90% (non-condensing) Storage Humidity: 5%~95% (non-condensing) Industriy Standard EMI:FCC Part 15 Subpart B Class A,EN 55024 EMS: IEC61000-4-2 (ESD):±8kV Contact discharge,±15kV Air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4 (EFT): Power Port:±4kV; Data Port:±2kV IEC61000-4-5 (Surge):Power Port: common mode±4kV / differential mode ±2kV; Data Port: common mode ±6kV / differential mode ±4kV IEC61000-4-6 (Radio frequency conduction): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m; 1000A/m, 1s to 3s IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV,DM 1kV IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 MTBF 100,000 hours

ALLNET Media Converter PoE (15.4W/30W) to 1000BASE-SX/LX Single-/ Multimode SFP Mini-GBIC Connector "ALL-MC202P-SFP Highlights: 1x 10/100/1000BaseT Ethernet TP port with IEEE802.3at max. 30W PoE; 1x 1000BaseSX/LX SFP slot TP port supports Half/Full-Duplex, Auto-MDI/MDI-X and Auto-Negotiation SFP slot supports multi or single mode SFP (mini Gbic) modules Ethernet 802.3x flow control extended temperature range -20° ~ +60° Power supply included The ALL-MC202P-SFP1-PoE is an IEEE 802.3at / 802.3af Power over Ethernet Injector that provide DC 52V over Ethernet cables. To inserts DC Voltage into Cat.5 / 5e / 6 cables, allowing the cable between the Injector (RM202-1GF1GT) and PoE PD (Powered Device) to transfer data and power simultaneously. The maximum distance between the Injector (RM202-1GF1GT) and PoE PD is 100 meters. The ALL-MC202P-SFP1-PoE is combines the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3at / 802.3af Power over Ethernet Injector. And using the Power over Ethernet splitter, it can separate the digital data and the power into two outputs. The benefits of ALL-MC202P-SFP1-PoE are like cost saving, easy for networking planning and higher reliability. What’s more, upon any IEEE 802.3at / 802.3af devices installed, the ALL-MC202P-SFP1-PoE or PD all can make the connection while migrating and the Ethernet digital packets, such as connecting the ALL-MC202P-SFP1-PoE to an IEEE 802.3at / 802.3af complied devices, wireless AP or IP Camera. Link Fault Pass Through (LFP) The LFP function includes the Link Fault Pass Through function (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function. LLCF (Link Loss Carry Forward) means when a device connected to the converter and the TP line loss the link, the converter’s fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device connected to the converter and the fiber line loss the link, the converter’s fiber will disconnect the link of transmit. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. Link Loss Carry Forward (LLCF) RM202-1GF1GT incorporates an LLCF function for troubleshooting a remote connection. When LFP function is enabled, the FL / TP ports do not transmit a link signal until they receive a link signal from the opposite port. The diagram below shows a typical network configuration with a good link status using RM202-1GF1GT for remote connectivity. If the connection breaks, RM202-1GF1GT that link loss forward to the Switch / Hub that generates a trap to the management station. The administrator can then determine the source of the problem. Link Loss Return (LLR) The fiber ports of RM202-1GF1GT have been designed with an LLR function for troubleshooting a remote connection. LLR works in conjunction with LLCF. When LFP function is enabled, the port’s transmitter shuts down when its receiver fails to detect a valid receive link. LLR should only be enabled on one end of the link and is typically enabled on either the unmanaged or remote device. The diagram below shows a typical network configuration with a good link status using RM202-1GF1GT for remote connectivity. Note that LLR and LLCF are enabled as indicated in the diagram. If one of the optical conductors is down (as shown in the diagram box below), the converter with LLR function will return a no-link condition to its link partner. With LLCF function also enabled, the no-link condition is carried forward to the switch/ hub where a trap is generated to the management station, and the administrator can then determine the source of the loss. Technical Details: Element Spezifization Standards: IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control Network connections: 1x 10/100/1000BaseT (RJ-45) 1x 1000BaseSX/LX SFP Module Slot Data transmission rate: Half/Full-Duplex on TP PoE: IEEE802.3at/af compatible Transmission media: P:10/100/1000BaseT Cat. 5, 5E, 6 UTP/STP, bis zu 100 m 1000BaseSX: 62.5/125µm Multi Mode LWL, bis zu 220 m 50/125µm Multi Mode LWL, bis zu 550 m 1000BaseLX: 9/125µm Single Mode LWL LED: PWR, FX LNK/ACT, TP LNK/ACT, PoE in Use Power supply: DC 52V/1,25A external PSU Dimensions: 95 x 70 x 25mm Environment: Operating temperature: -20 ~ 60 °C Operating Humidity: 5% ~ 95% (non condensing) Storage temperature -40 ~ 85 °C Storage Humidity: 5% ~ 95% (non-condensing) Marks: CE

Highlights: Outdoor IP67 Gigabit Extender Repeater. 1x 10/100/1000M PoE (IEEE802.3bt POE+) INPUT 2x10/100/1000M PoE (IEEE802.3af /at POE+) OUTPUT Extended operating temperature: -20°C to +60°C The new ALL-PR2013O-30W is a small 2-port PoE switch or PoE repeater and extends the PoE signal by 100 meters each. This length is normally the maximum distance for PoE supply from power and data. With the help of the repeater, up to 300 meters of PoE can be achieved if a new device is installed every 100 meters. This is only possible because it is an active device and the signal is always reprocessed. The repeater is fed with IEEE802.3bt and outputs IEEE802.3af/at PoE up to 70 watts. The certification for protection classes -IP67 makes the product suitable for outdoor use, as it is dustproof and protected against heavy splash water and short submersion. To give you a better idea of the concept of an outdoor repeater, here are some usage scenarios:     Power and data supply of an outdoor IP camera and an access point simultaneously     Connection of two IP cameras with simultaneous power supply     Possibility of an emergency IP phone outside the company building     Bridging of a longer distance between two buildings A BT power supply is required!!! e.g. 188381  Technical Details: Model ALL-PR2013O-30W Standard IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3af IEEE802.3at IEEE802.3bt Port PoE in port:1 x 10/100/1000Mbps RJ45 port PoE out port : 2 x 10/100/1000Mbps RJ45 port Network Media(Cable) 10BASE-T: UTP category 3,4, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-TX: UTP category5e cable (≤100m) LED LAN PoE Standard IEEE802.3af/at/bt Dimensions (L*W*H) 150*73*44MM RJ45 PoE PoE in port: PoE PIN 1/2 = (+) PIN 3/6 = (-) or PIN 4/5 (+) and  PIN 7/8 = (-) PoE out port:  PINS 1/2 = (+) and  PINS 3/6 = (-) PoE port 2 Power Supply PoE PD port input 95W Max PoE Power Output Per port 48-55V DC  Max.30W IEEE802.3at Operating Temperature -20°C ~ 60 °C Storage Temperature -40 °C ~ 80 °C Operating Humidity 10% ~ 90% non-condensing Storage Humidity 5% ~ 90% non-condensing Surge Protection Differential mode±4KV, Common mode±6KV MTBF >50000 hour Electrostatic standard Contact 6KV,air 8KV Weather Rating IP67 Vandal Proof IK10 Marks CE

ALLNET PoE Injector Industrial Gigabit / PoE BT (15.4W/30W/90W) / DIN / metal housing / "ALL-PI2014-I-BT90" Highlights: 1 RJ45 Ethernet data input + 1 RJ45 Power over Ethernet output (Data + Power) 90W LTPoE++ power sourcing equipment support DIN rail and wall mounting bracket 48~57VDC terminal block for optional external power supplies (NOTE: POWER SUPPLY IS NEEDED) Supports 10/100/1000Base-TX IEEE802.3at PoE+ compatible Extensive LED indicators for PoE diagnostics -40°C to +75°C operating temperature Ensure the reliable power supply of your PoE devices with the ALLNET PoE Injector Industrial Gigabit, model "ALL-PI2014-I-BT90." This high-quality PoE injector offers a range of features to optimize your network infrastructure. Here are some of the highlights: Data and Power Over a Single Cable: The injector features one RJ45 Ethernet data input and one RJ45 Power over Ethernet output. This allows you to transmit both data and power over a single Ethernet cable, simplifying your cabling. Powerful PoE: With support for 90W LTPoE++ (Low-Temperature Power over Ethernet), this injector is capable of supplying ample power to even high-power PoE devices. Versatile Mounting Options: The injector can be mounted on DIN rails and walls, providing flexibility in installation. Optional External Power Supplies: For added flexibility, the injector includes a 48~57VDC terminal block for optional external power supplies. Note that an external power supply needs to be purchased separately. Gigabit Speed: The injector supports 10/100/1000Base-TX, making it compatible with both Gigabit and standard Ethernet networks. PoE+ Compatible: It is IEEE802.3at PoE+ compatible, enabling the power supply of PoE+ devices. Comprehensive Diagnostics: The extensive LED indicators offer a quick and easy way to monitor the status of PoE power delivery and conduct diagnostics. Robust Design: With an operating temperature range of -40°C to +75°C, this PoE injector is suitable for use in demanding environments. The ALLNET PoE Injector Industrial Gigabit / PoE BT (model "ALL-PI2014-I-BT90") is the ideal solution to reliably power your PoE devices and operate your network smoothly and efficiently.   Technical Details: Model ALL-PI2014-I-BT90 Standards Compliance IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Plus Plus Fixed Port Ethernet in:1x10/100/1000Base-TX RJ45 PoE out:1x10/100/1000Base-TX PoE++ PSE RJ45 Power in:1x48~57VDC,Max 2A (3 Pin Terminal Block) Network Medium 10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 UTP or better(≤100 meters) 1000BASE-TX: Cat5e,6 UTP or better(≤100 meters) PoE Description PoE Standard:IEEE802.3af/at/bt PSE PoE Pin Assignment:1/2/4/5+,3/6/7/8-(4-Pair) PoE Distance:Max 100m(Cat5e/Cat6) PoE Power Output:Max 90W(DC52-57V,1.73A) LED Indicator PWR:Lights to indicate the injector has power input PoE:Lights to indicate the injector is providing PoE power 25%,50%,75%,100%(PoE Power Usage Indicator): 25%:off to indicate the PoE power usage is less than 25%,blinks to indicate the PoE power usage is around 0-24%,lights to indicate the PoE power usage is more than 25% 50%:blinks to indicate the PoE power usage is around 26-49%,lights to indicate the PoE power usage is more than 50% 75%:blinks to indicate the PoE power usage is around 51-74%,lights to indicate the PoE power usage is more than 75% 100%:blinks to indicate the PoE power usage is around 76-99%,lights to indicate the PoE power usage is at the maximum Mechanical Case: IP30 Slim type metal case Cooling way: Natural cooling,fanless design Dimension: 110x98x31mm(LxWxH) Weight: 0.35Kg Installation:DIN-Rail / Wall-mount Protection 6KV 8/20u lighting protection 6KV ESD protection under-voltage,over-voltage,over-current and short circuit protection Environmental Working Temperature: -40°C to +80°C Storage Temperature:-40°C to +85°C Working Humidity: 10%~90% (non-condensing) Storage Humidity: 5% ~ 90%(non-condensing) MTBF 100,000 hours

Highlights: 60 Watt PoE IP67 Outdoor Injector according to IEEE802.3bt Standard IP67 weatherproof & IK10 shockproof for robust outdoor installations 1x 10/100/1000M TX PoE output according to IEEE802.3af/at/bt 60W 1x AC 100~240V input voltage on 2PIN terminal (AC connection cable must be installed by customer, thus flexible in installation) Extended operating temperature: -20°C to +60°C This product is a waterproof Gigabit Power over Ethernet (PoE) device for powering most common IP end devices. The injector is fully compliant with the IEEE 802.3af/at/bt standard. The device also complies with the IP67 protection class, which means it is weatherproof and can be used outdoors without any problems. Thanks to the IK10 standard, the injector is vibration-resistant, which ensures reliable and safe use, even in industrial environments. It transmits the required electrical energy and implements the data exchange via an RJ45 cable with a maximum transmission distance of 100 metres. The injector automatically detects which PoE standard is present at the end device on the output side and regulates the voltage automatically. The injector can supply a PoE end device at the output with a maximum power of 60W according to the IEEE802.3BT standard.     Technical Details:   Technical Details: Model: ALL-PI2013OBT60 - 60W waterproof PoE injector AC to BT 60W IEEE Standard: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3af for POE IEEE802.3at for POE+ IEEE802.3bt Network Media (Cable): 10BASE-T: UTP category 3,4,5 cable (≤100m)  100BASE-TX: UTP category 5 cable (≤100m)  1000BASE-T: UTP category 5e cable (≤100m) Network Connector:   1xRJ-45 10/100/1000BaseT(X) Data 1xRJ-45 10/100/1000BaseT(X) PSE with POE Output power IEEE802.3bt 60W Input current: 1,5A Max Power input: AC 100-240V 50/60Hz 2 PIN Terminal PoE Power output: 60W Max. IEEE802.3bt POE Pin Assignment RJ45: 1/2(-), 3/6(+) and 4/5(+),7/8(-) Output Voltage: DC 55V±5% Output ripple voltage: ≤200mV,Test conditions: rated input voltage, full load output, Tested with 20MHz bandwidth oscilloscope, Parallel connected a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to the output Output current: 1.1A Max. LED Indicator: PWR(Green) , PoE(Bt:Green,UPoE:orange) Dimmension: 150 x 73 x 44mm Operating Temperature: -20°C ~ 60°C Storage Temperature: -40°C ~ 80°C Surge Protection: Difference Mode:±4KV, Common mode:±6KV MTBF: <50000 hours Electrostatic standard: Contact 6KV, air 8KV Waterproof grade: IP67 Anti-hazard classification: IK10

Highlights: Robust industrial 200W "power booster" Voltage boost from 12V DC to 54V DC to supply the PD devices with max. 100W Voltage boost from 24V DC to 54V DC to supply the PD devices with max. 200W Input voltage 12~24V DC Output voltage variably adjustable from 48V DC to 54V DC (rotary knob/screwdriver flat front) Extended operating temperature: -40°C to +75°C This PoE Voltage Booster is a rugged and versatile solution for demanding environments. It raises the low input voltage to provide PoE to end devices to guarantee a steady voltage output to your PD in a harsh environment. With input voltage range 12~24VDC, it efficiently boosts the voltage to 52~54VDC and delivering 100W of power; alternatively, with input voltage range 24~48VDC, it boost the voltage to 52~54VDC and  providing a robust power output of 200W. With an adjustable voltage knob, you can fine-tune the output voltage between 52VDC to 54VDC to match your device's requirements. It’s tested rigorously for security, transportation, and telco applications, this power booster ensures reliable operation in harsh conditions. Experience enhanced power delivery with the Hardened Industrial 100W/200W Power Booster. Housing Dimension (mm) Technical Details LED PWR(Amber) ON– power ready. OFF – no power input Overload current protection Present Removable Terminal Block / Power Connector 4 pin terminal block. 2 pin for 12~48VDC Voltage Input 2 pin for 52~54 VDC Voltage output Removable Terminal Block Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG):12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque:5lb-In/0.5Nm/0.56Nm Wire Strip length: 7-8mm Voltage Adjustable Knob To adjust voltage output from 52VDC to 54VDC to meet your existing application Booster Power Maximum Booster power 100watts at 12~24VDC input Maximum Booster power 200watts at 24~48VDC input Operating Temperature -40°C to +75°C fully tested. Operating Humidity 5% to 95% (Non-condensing) Storage Temperature -40°C to +85°C Housing Rugged Metal, IP30 Protection Case Dimension (L X W X D) mm 103.5 x 32 x 81.5 mm (LxWxD) Installation mounting DIN-Rail and wall mount brackets included Certifications Safety LVD (EN62368-1) EMC FCC/CE EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV IEC 61000-4-5 Surge: Power: 4KV; Signal: 2KV Vibration EN 60068-2-6 Shock EN 60068-2-27 Free Fall EN 60068-2-32

*Auftragsbezogen, nicht Stornierbar*, VGA Port: 1x HDB-15 Buchse, HDMI Port: DisplayPort(DP) Stecker Der VC925 ist ein DisplayPort auf VGA Adapter, mit dem Sie den DisplayPort Ausgang Ihres Gerätes mit einem VGA Eingang eines Fernsehers oder anderen Monitors verbinden können. Der VC925 bietet eine kostengünstige und dennoch leistungsstarke Lösung für die Signalumwandlung. Dieser Adapter eignet sich daher perfekt für Computer und Notebooks, die eine Anzeigeauflösung von bis zu WUXGA (1920x1200 bei 60 Hz) unterstützen. Konvertiert DisplayPort Signale zu VGA Ausgang DisplayPort 1.2 kompatibel Unterstützt VGA, SVGA, XGA, SXGA, UXGA und Auflösungen bis zu 1920x1200 (PC) / 1080p (HDTV) Keine Software oder Treiberinstallation notwendig
